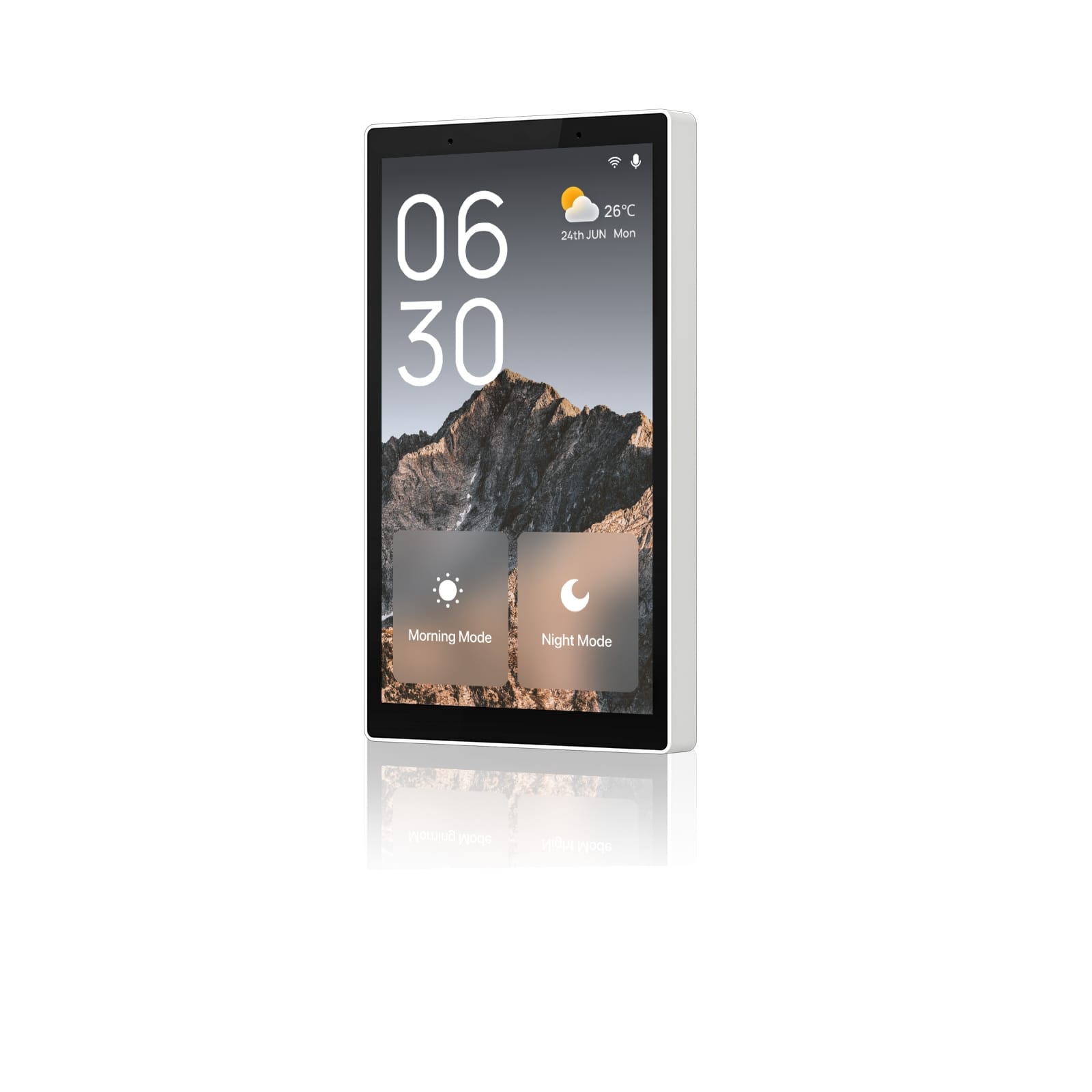

5-Inch Smart Home Control Panel with Alexa & Zigbee
Bring your smart home devices together with this compact 5-Inch Smart Home Control Panel, designed to provide convenient central control for lighting, switches, sensors, smart locks, cameras and other compatible smart devices.
The panel features a built-in Zigbee gateway, allowing compatible Zigbee devices to connect directly without requiring a separate Zigbee hub. With Alexa Built-in, you can also control supported devices and smart scenes using voice commands.
Powered by a Linux operating system, the control panel delivers smooth and responsive operation while providing easy access to your most commonly used smart home functions.
Central Smart Home Control

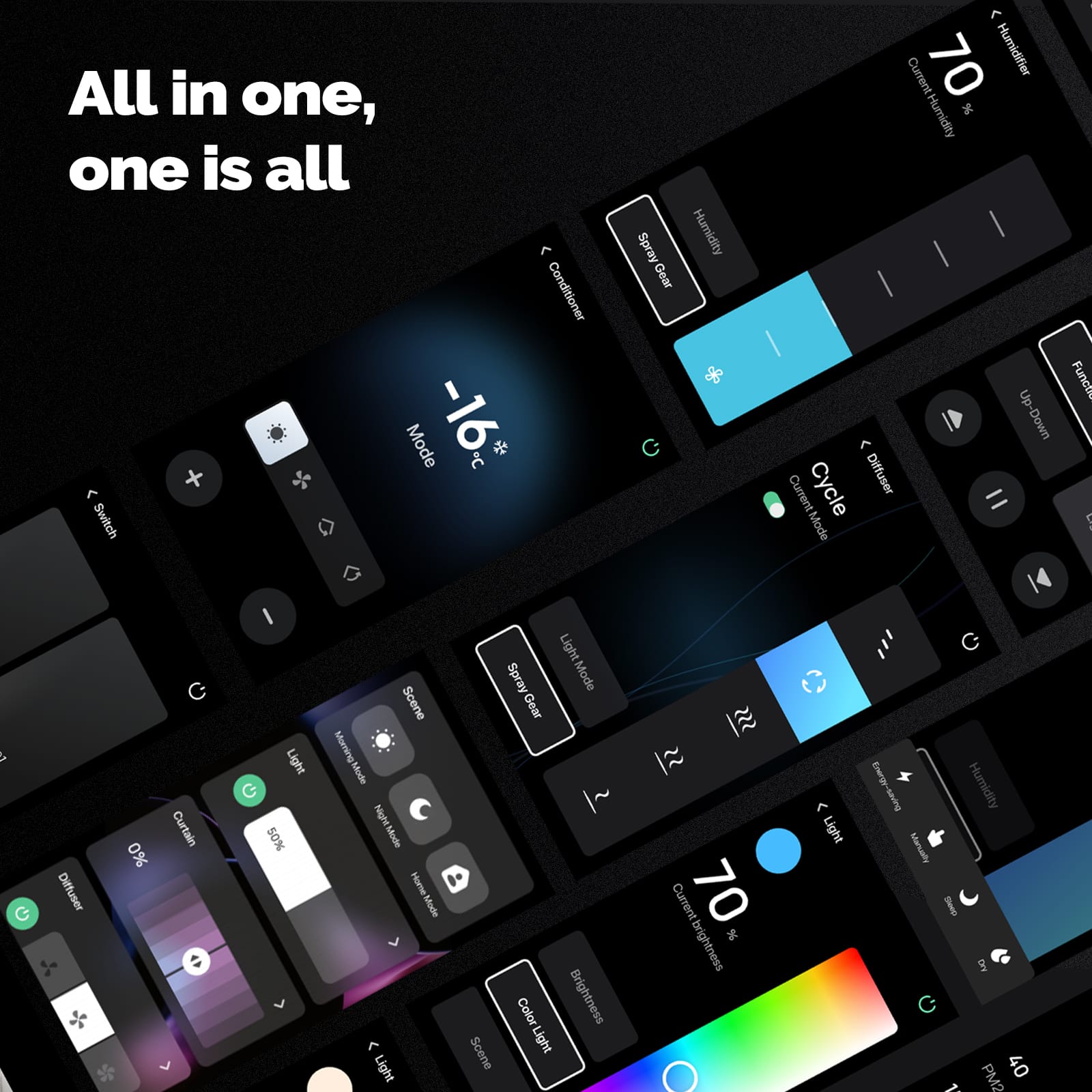

The 5-Inch Smart Home Control Panel provides central control for compatible smart devices and scenes from one easy-to-use touchscreen.
Create and manage smart scenes for different times of the day or different activities around your home. Lights, switches and other connected devices can be controlled directly from the touchscreen or through the compatible mobile app.
You can create scenes such as Morning Mode, Night Mode, Home Mode or Away Mode and control multiple compatible devices with a single command.
Built-In Zigbee Gateway
The integrated Zigbee gateway allows the control panel to communicate directly with compatible Zigbee devices.
With the 5-Inch Smart Home Control Panel, you can connect and manage compatible Zigbee devices without the need for a separate Zigbee hub.
It can support a wide range of smart home products including:
Smart light switches
Smart lights
Smart power points and sockets
Motion and presence sensors
Door and window sensors
Smart locks
Smart curtains and blinds
Compatible cameras
Other Zigbee smart home devices
The system supports connection of 80+ compatible smart devices, making it suitable for both small and larger smart home setups.
Alexa Built-In Voice Control
With Alexa Built-in, supported smart home devices and scenes can be controlled using voice commands.
You can use voice control to operate compatible lighting, activate scenes and manage other connected smart devices without needing to use the touchscreen.

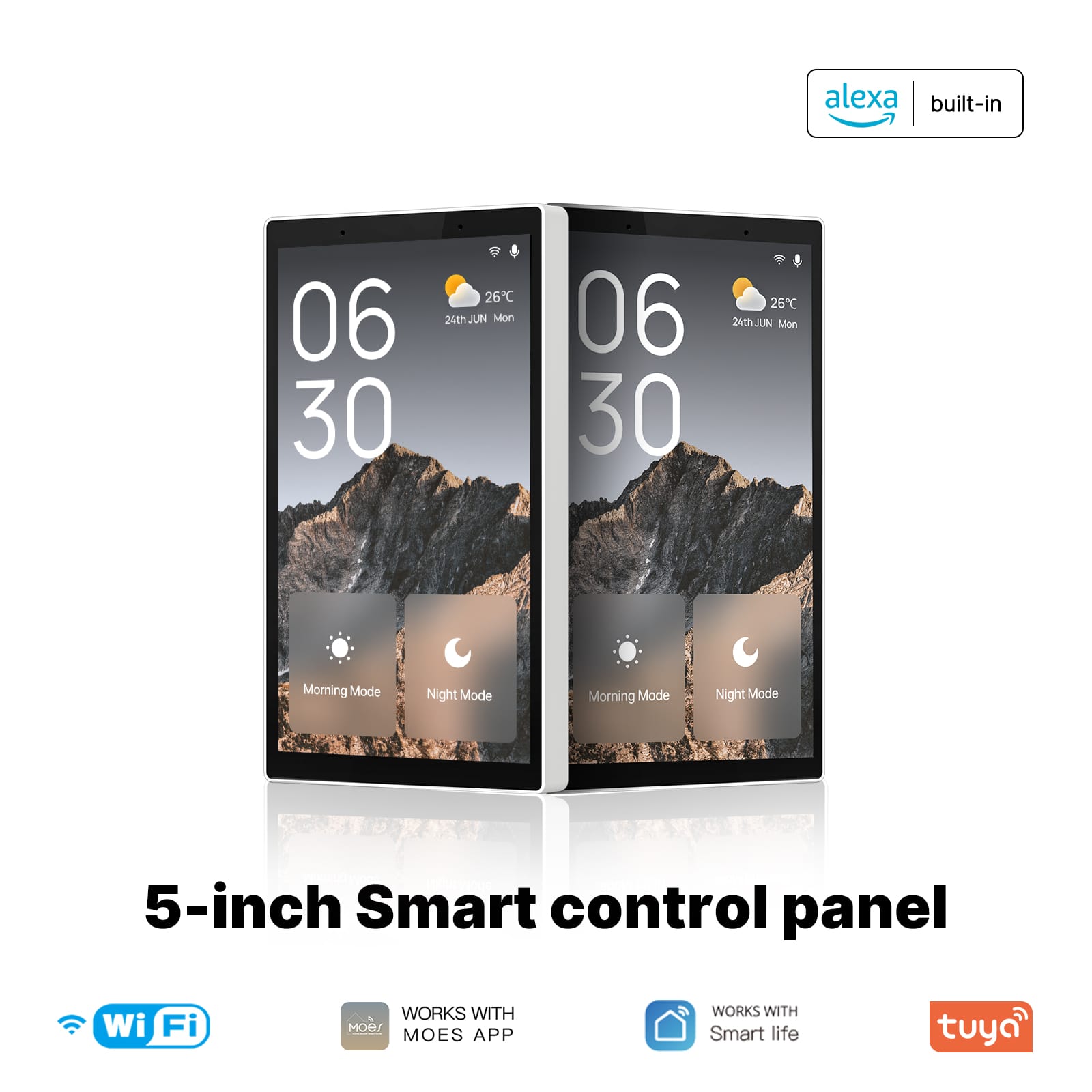

5-Inch Full Touchscreen
The compact 5-inch touchscreen provides quick access to your smart home controls while maintaining a clean and modern appearance on the wall.

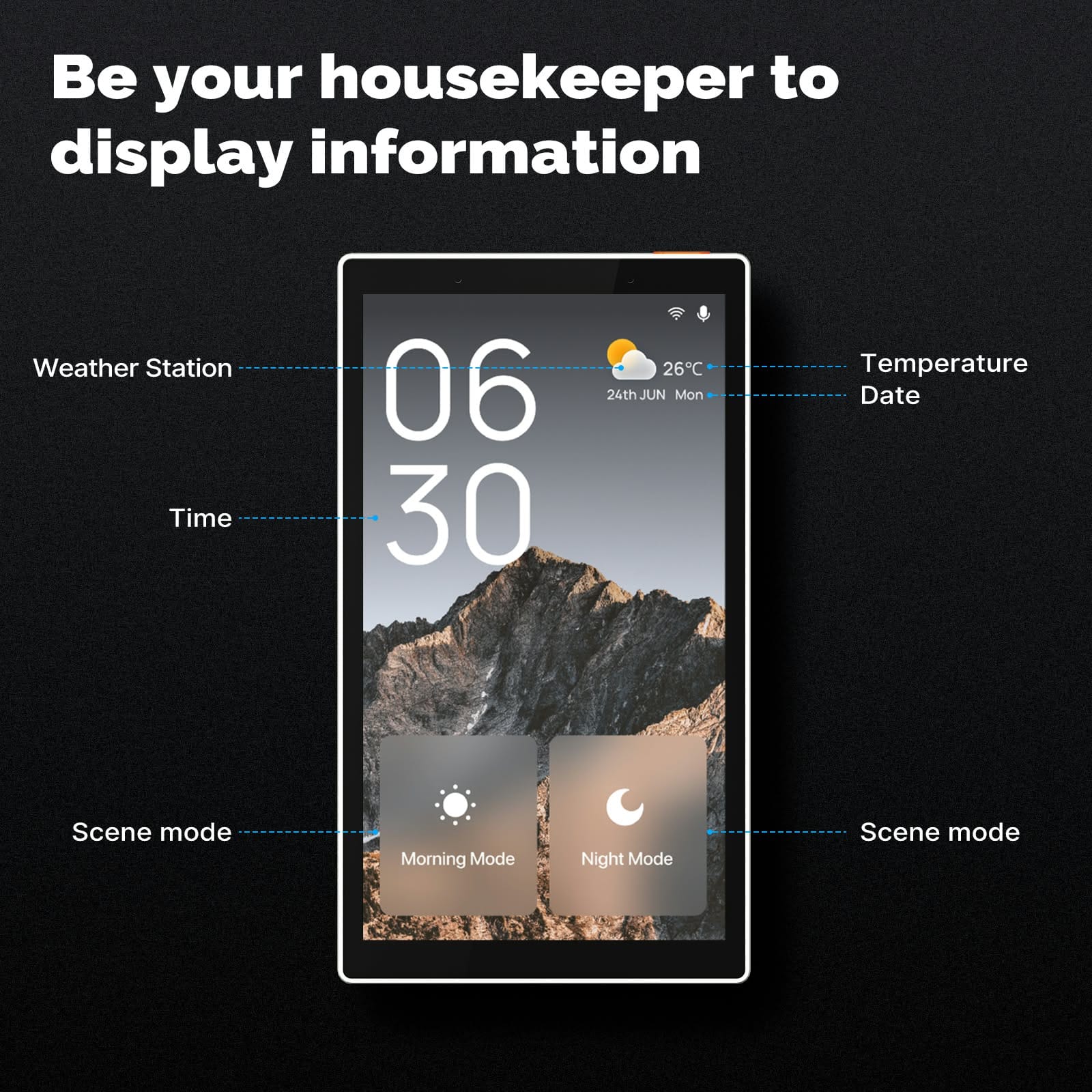

The display can show useful information including:
Time
Date
Weather information
Smart scenes
Connected device controls
Wi-Fi & Wired Network Connection

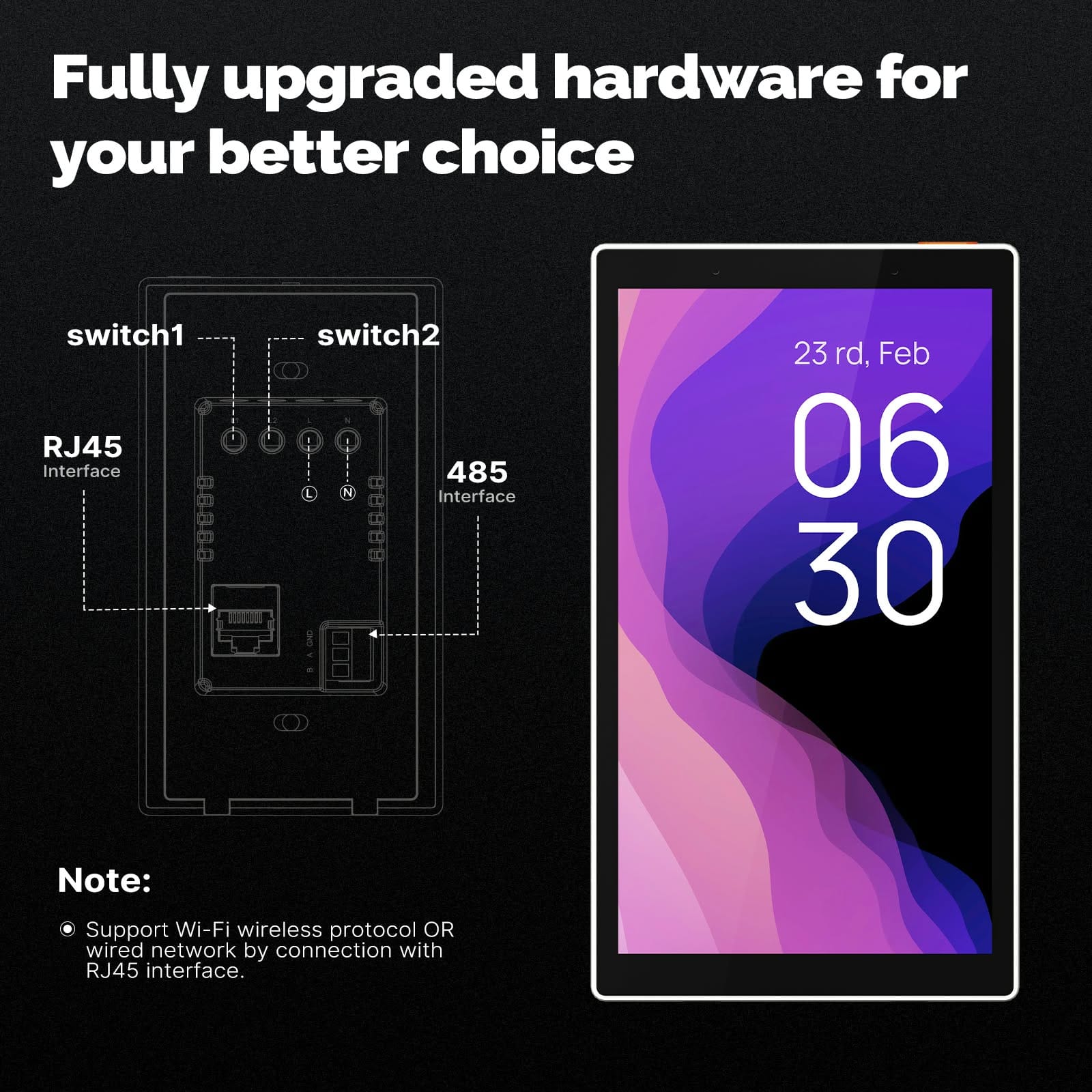

The control panel supports both Wi-Fi and RJ45 Ethernet connections, giving you flexibility when connecting the panel to your home network.
A wired Ethernet connection can be used where a stable network connection is preferred.
Remote App Control
Compatible smart devices can also be managed remotely through the mobile app, allowing you to check and control your smart home while you are away.
RS485 Interface
An integrated RS485 interface provides additional connectivity options for compatible equipment and smart home applications.
Technical Specifications
Product Type: 5-Inch Smart Home Control Panel
Model: TPP05-Z
Operating System: Linux
Display: 5-Inch Full Touchscreen
Voice Assistant: Alexa Built-in
Wireless Protocols: Wi-Fi & Zigbee
Zigbee Gateway: Built-in
Wired Network: RJ45 Ethernet
Interface: RS485
Input Voltage: 100–240V AC, 50/60Hz
Maximum Current: 5A
Maximum Load:
Tungsten / Incandescent: 200W
Dimmable CFL / LED: 200W
Ballast / Fluorescent: 200VA
Operating Temperature: 0°C to 40°C
Operating Humidity: 5%–90% RH, non-condensing

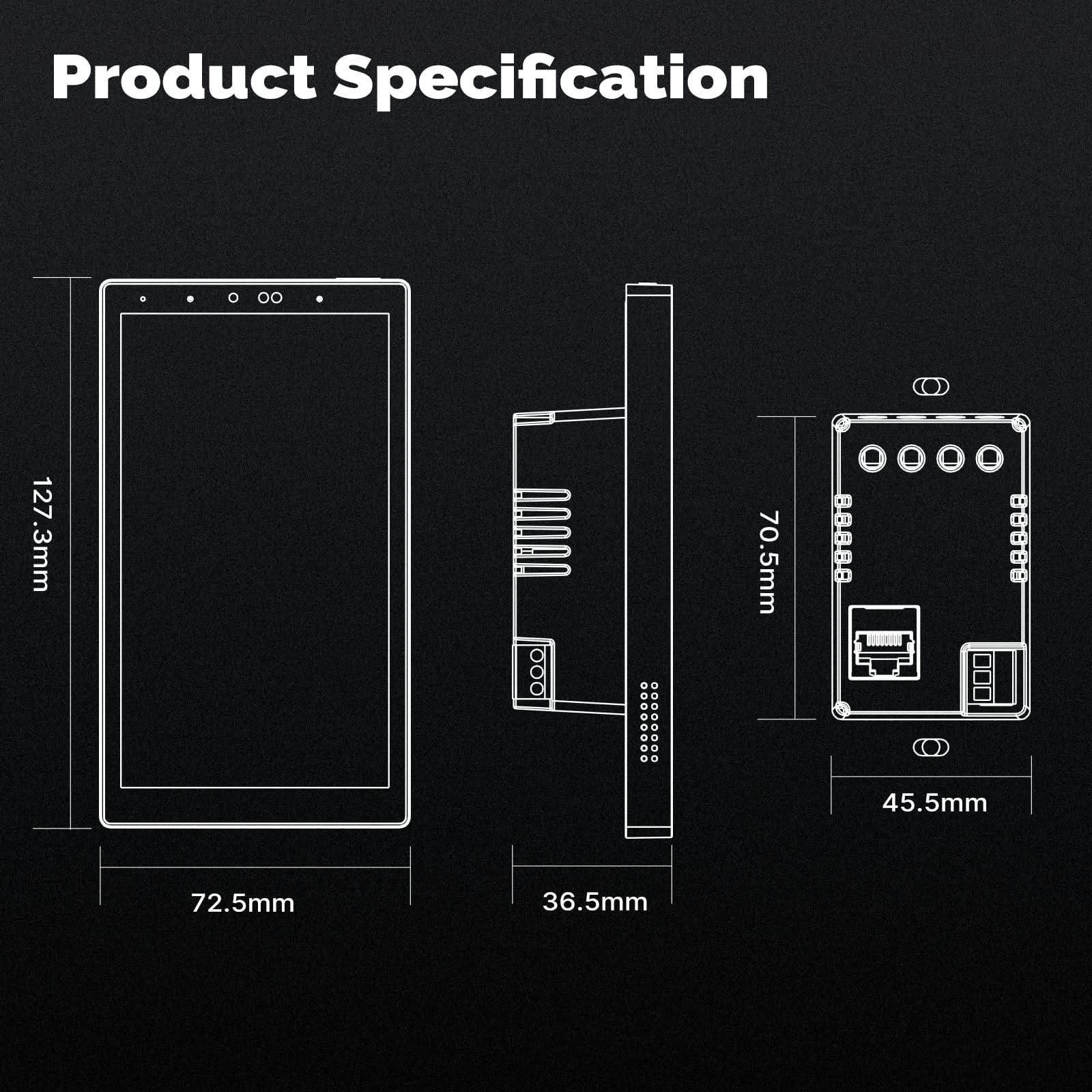

Product Size Without Base: Approx. 72 × 127.3 × 10.5 mm
Product Size With Base: Approx. 72 × 127.3 × 36.5 mm
Net Weight: Approx. 215g
Neutral Wire: Required
USB-C: Temporary / emergency power supply only
